Who is Fugano suitable for?

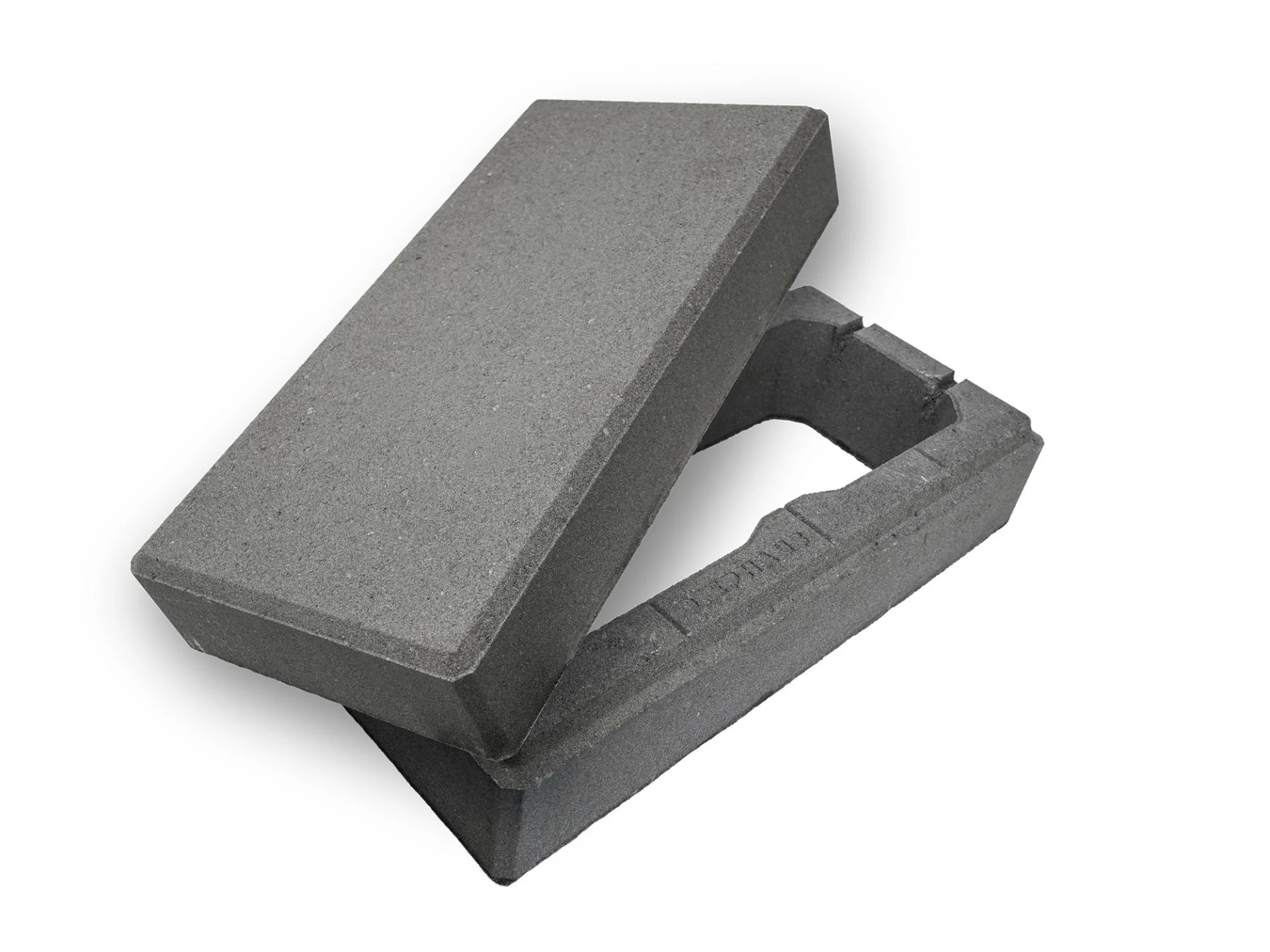

The stone is aimed at garden owners as well as garden and landscape designers who want to build modern, straight walls; the Fugano cover plate in grey is available for the matching top finish .

Areas of application and test points

According to Diephaus product data and installation instructions for wall elements, the following applications and test points apply:

• Property boundaries
• Decorative garden walls
• Visual and noise barrier walls
• Boundaries and boundaries, as well as terrain terracing
• According to Diephaus, it can be combined with glass, metal or wood.
• Finish the wall coping with the appropriate cover plate, glue on the finishing layer.
• Foundation with frost protection layer, lean concrete and mortar leveling; half-bond with 3–5 mm joint.
• Do not use road salt; mix stones from several packages.

Your advantage in modern garden design

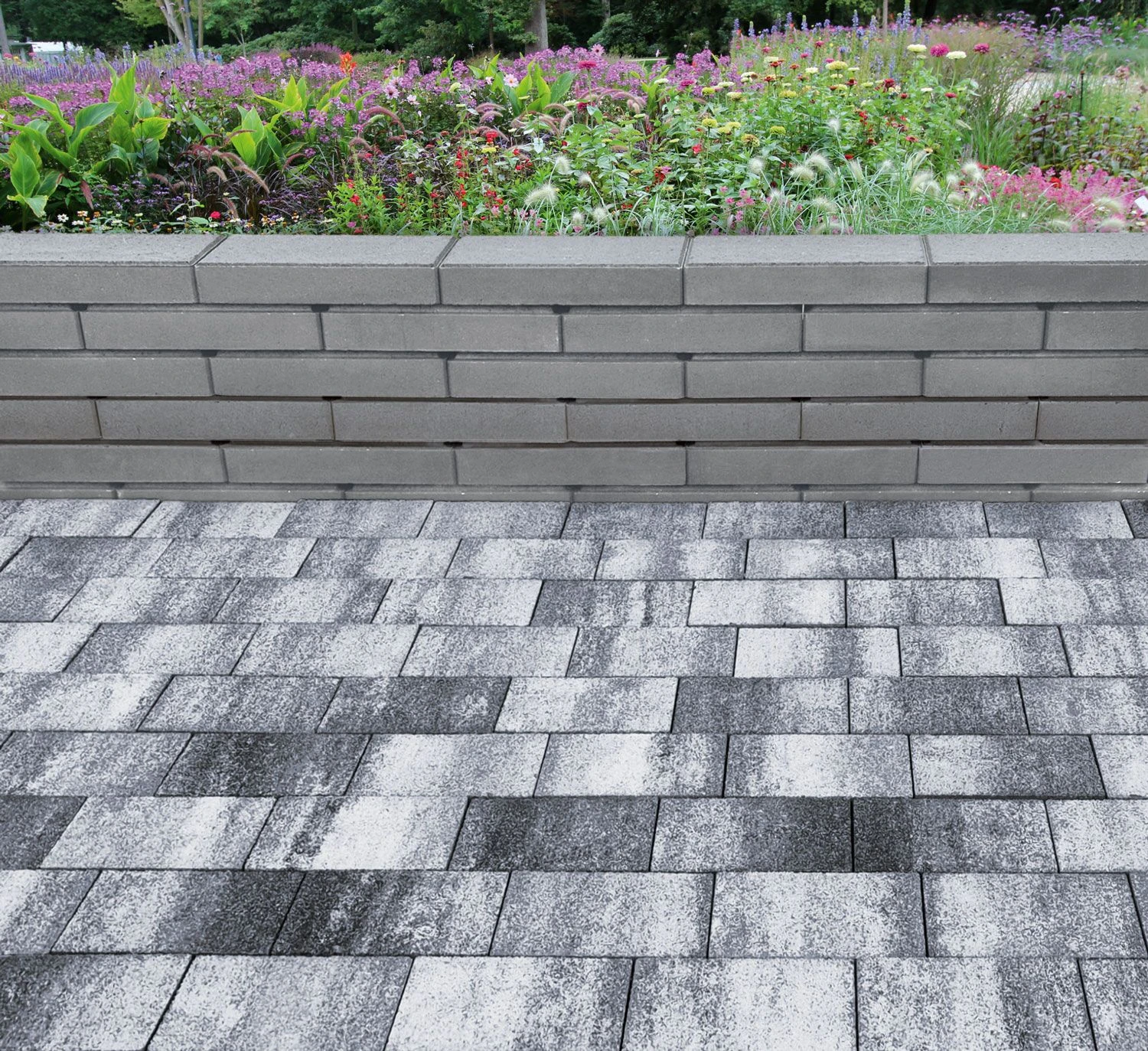

The flat, elongated format and the graphically emphasized joint pattern give the wall a calm, horizontal effect, and according to Diephaus, the hollow stone is easier to work with.

Planning and building a wall

According to Diephaus, the foundation depends on the soil conditions, wall height and the slope of the wall.

Foundation and offset

Diephaus specifies an excavation depth of 50 to 80 cm, 10 cm wider on both sides than the wall, 30 to 60 cm of frost protection, approximately 20 cm of lean concrete, and 5 to 10 cm of mortar leveling. It is recommended that the stones be laid in a half-bond pattern.

Quantity required

With a length of 50 cm and a height of 10 cm, this equates to 20 stones per m² of visible surface without joints; two cover plates per linear meter are added for finishing.

Care and limits

The stone has no surface protection; according to Diephaus, efflorescence is not a defect in concrete. Higher or freestanding walls require further structural engineering measures, including static calculations, according to Diephaus; you can find more stones in the Diephaus overview .

Product features at a glance

Technical data: Diephaus Fugano Mauer Grey 50 × 25 × 10 cm

The information is taken from the Diephaus product data for the Fugano series and the Diephaus installation instructions for wall elements (as of 09/26).
