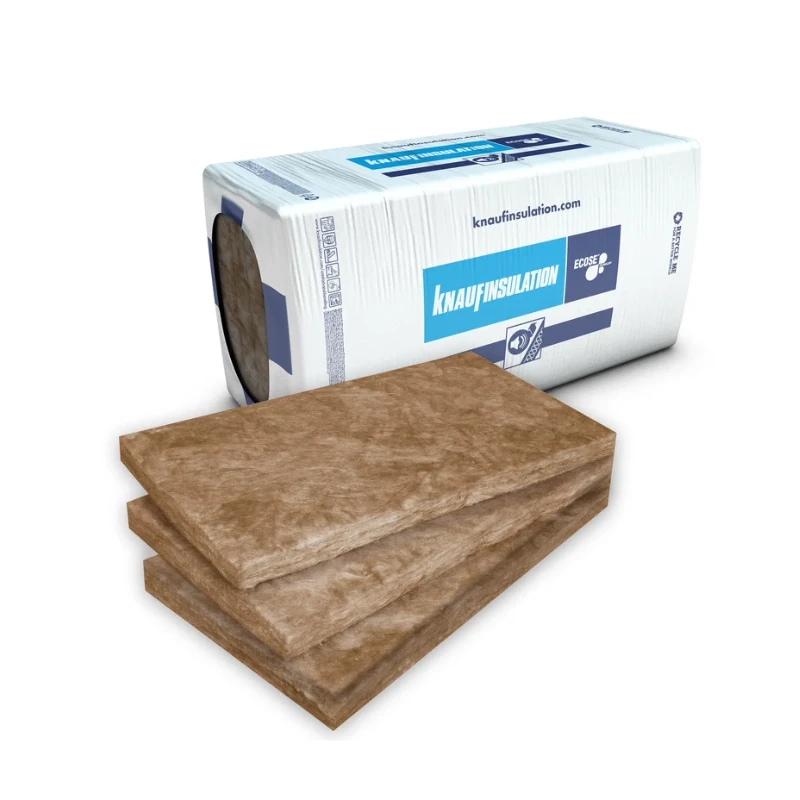

Knauf partition wall insulation board TP 115 – glass wool WLS 038 for drywall partitions
The Knauf TP 115 partition wall insulation board is a non-combustible glass wool insulation board with ECOSE® Technology for sound and thermal insulation of partition walls and walls in drywall construction. With a thermal conductivity of 0.038 W/(m·K) and a fire rating of A1, it provides thermal, acoustic, and fire protection in interior construction, according to Knauf. One package contains 9.43 m² of boards in the format 1250 × 625 mm.
Who is the partition wall insulation panel suitable for?
The panel is aimed at drywallers, interior fitters and renovators who insulate stud walls with gypsum plasterboard; suitable components can be found in the categories drywall profiles and gypsum board .
Areas of application and selection criteria
Typical uses and points to check before ordering:
- Non-load-bearing partition walls in drywall construction
- Partition walls with gypsum board cladding
- Interior design in office and residential buildings
- Walls with sound and fire protection requirements
- Match the plate thickness to the stand width
- Check the thermal resistance of the selected thickness.
- Fire protection should only be applied in the tested wall system.
- Observe Knauf processing guidelines
Your advantage when buying
One panel covers heat, sound and fire protection in interior construction; as a non-combustible building material of class A1, the insulation material does not contribute to the fire.
What you should pay attention to when making your selection
The decisive factors are the panel thickness, stud width, and the sound and fire protection requirements for the wall.
Thickness and thermal resistance
Knauf offers TP 115 in thicknesses from 40 to 100 mm; the design value of the thermal resistance ranges accordingly from 1.05 to 2.63 (m²·K)/W.
Sound insulation and fire protection
The linear flow resistance is at least 5 kPa·s/m² (AFr5); fire resistance classes only result from the tested wall system.
Application and limits of use
The panels fill the cavity between the studs; the manufacturer's processing guidelines as well as the relevant standards and recognized rules of technology apply. The panel is intended for interior finishing.
Product features at a glance
Technical data: Knauf partition wall insulation board TP 115
The most important parameters according to the Knauf Insulation product data sheet; the thermal resistance depends on the panel thickness.
| Manufacturer | Knauf Insulation GmbH |
| Article number | Shop 14034 |
| Sales unit | 1 package of 9.43 m² |
| record format | 1250 × 625 mm; Supplied as sheet in PE shrink film |
| Material and designation key | glass wool; MW-EN 13162-T2-AFr5 |
| Thermal conductivity | Design value λ 0.038 W/(m·K); Nominal value λD 0.037 W/(m·K); WLS 038 |
| Design value R per thickness | 40 mm: 1.05 50 mm: 1.32 60 mm: 1.58 80 mm: 2.11 100 mm: 2.63 (m² K)/W |
| Fire behavior | A1 according to DIN EN 13501; no tendency to continuous smoldering (DIN EN 16733) |
| Flow resistance | AFr ≥ 5 kPa s/m² (DIN EN 29053) |
| Diffusion and heat capacity | μ approx. 1 (DIN EN 12086); cp 850 J/(kg K) |
| Temperature resistance | 150 °C |
| Application type and waste code | WTR, DI according to DIN 4108-10; waste code 170604 |
