Who is the Upmann balcony drain DN 50 suitable for?

It is aimed at installers, roofers and building owners who connect balcony or terrace areas to a DN 50 pipe; further drains from the manufacturer can be found in our Upmann category .

Areas of application and selection criteria

Typical uses and points to check before buying:

• Drainage of balcony surfaces
• Drainage of terrace areas
• Connection to DN 50 pipes with side outlet
• Choose horizontal or vertical exit direction
• Match the nominal diameter to the existing line
• Plan required throughput based on area
• Clarify connection to the surface waterproofing
• Check the corrosion resistance before installation

Your advantage: lightweight drain body, stainless steel grate

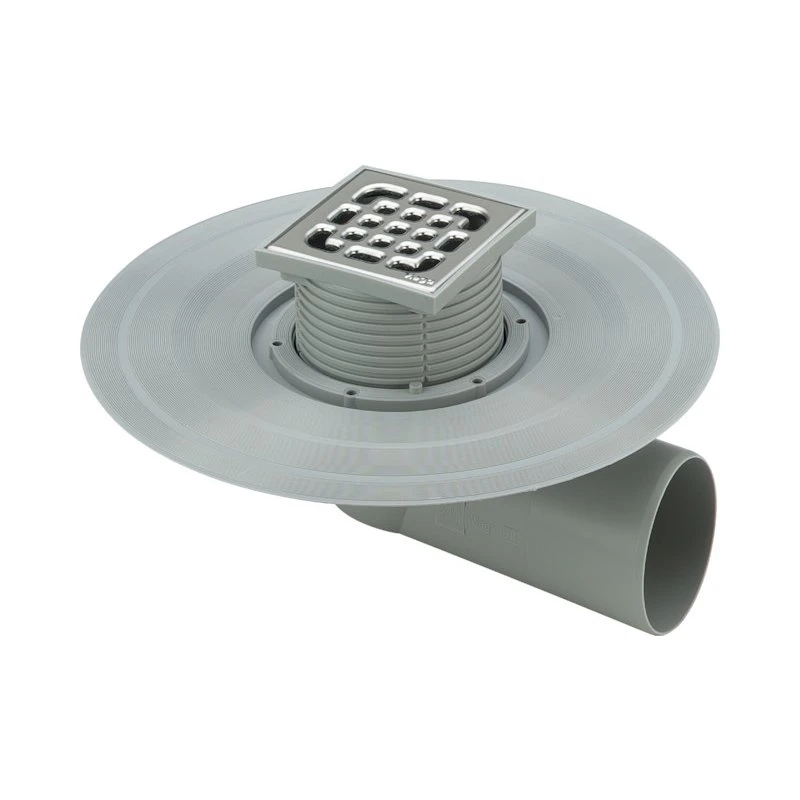

The polypropylene drain body is easy to handle, while the stainless steel grate forms the visible cover in the surface.

Select outlet direction and nominal diameter

The direction of drainage depends on whether the drainage pipe runs laterally within the structure or vertically through the ceiling.

Horizontal or vertical exit

This drain is designed for laterally running pipes; for vertically running pipes there is the Upmann balcony and terrace drain DN 50 vertical .

Nominal diameter DN 50

DN 50 refers to the nominal diameter of the connection; whether it is sufficient for your area depends on the required drainage capacity, which is not specified on the product page.

Installation and limitations

The drain must be connected tightly to the waterproofing of the balcony or terrace; load class, drainage capacity, odor trap and height adjustment are not confirmed in the tested documents.

Product features at a glance

Technical data: Upmann balcony and terrace drain DN 50, horizontal

The overview summarizes the information from the article page; manufacturer's documentation with performance and dimension specifications was not available.
