Who is the Upmann DN 70 basement drain suitable for?

It is aimed at installers and building owners who want to connect a basement floor to a laterally routed DN 70 pipe; you can find other drains from the manufacturer in our Upmann category .

Areas of application and selection criteria

Typical uses according to product name and points for selection:

• Point drainage of basement floors
• Lateral connection to DN 70 pipes
• Check the nominal diameter of the existing pipe
• Clarify the odor seal before purchasing.
• Check the load-bearing capacity of the floor surface
• Plan for backflow protection below the backflow level.
• Adjust installation height within the floor structure
• Plan required throughput

Your advantage: DN 70 in a compact format

The combination of 15 × 15 cm format and DN-70 connection is suitable for situations where the existing pipe is smaller than DN 100 and the drain is connected laterally.

Match nominal diameter and equipment

Before purchasing, the pipe size, required equipment and the location relative to the backflow level should be determined.

DN 70 or DN 100

For pipes DN 100 there is the Upmann basement drain 15 × 15 cm DN 100 horizontal , whose product page mentions odor trap, sludge bucket and class K 3.

Backflow protection

A backflow preventer is not specified for this item; if the drain is located below the backflow level, plan for a backflow preventer according to DIN 1986-100.

Installation and limitations

Install the drain at the lowest point of the floor on a slope; material, grate, odor trap, load class and drainage capacity are not specified in the tested documents.

Product features at a glance

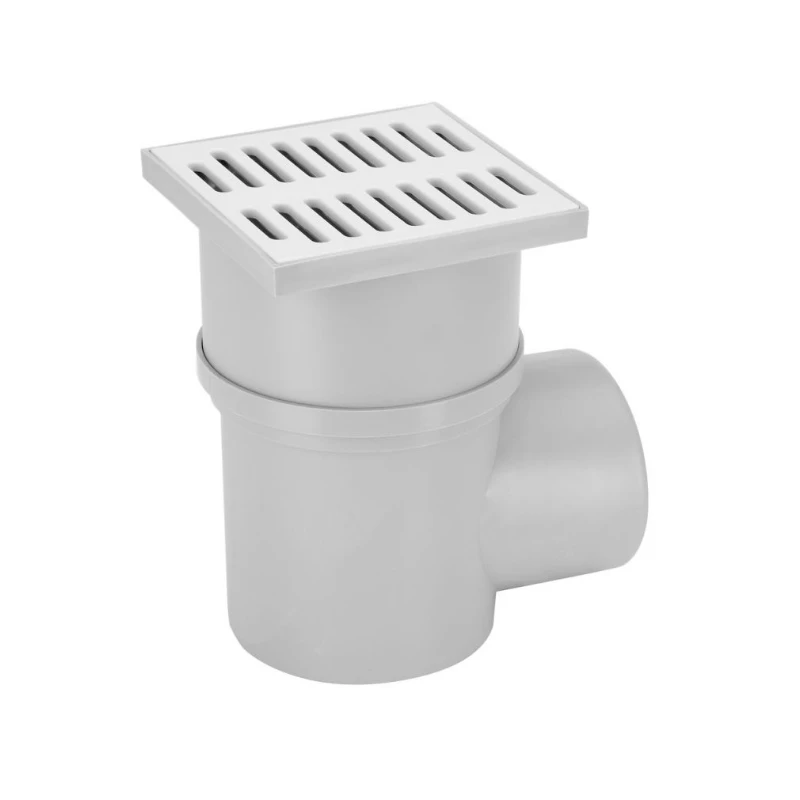

Technical data: Upmann basement drain 15 × 15 cm, DN 70, horizontal

The overview summarizes the information from the article description; manufacturer's documentation with material, performance and load specifications was not available.
