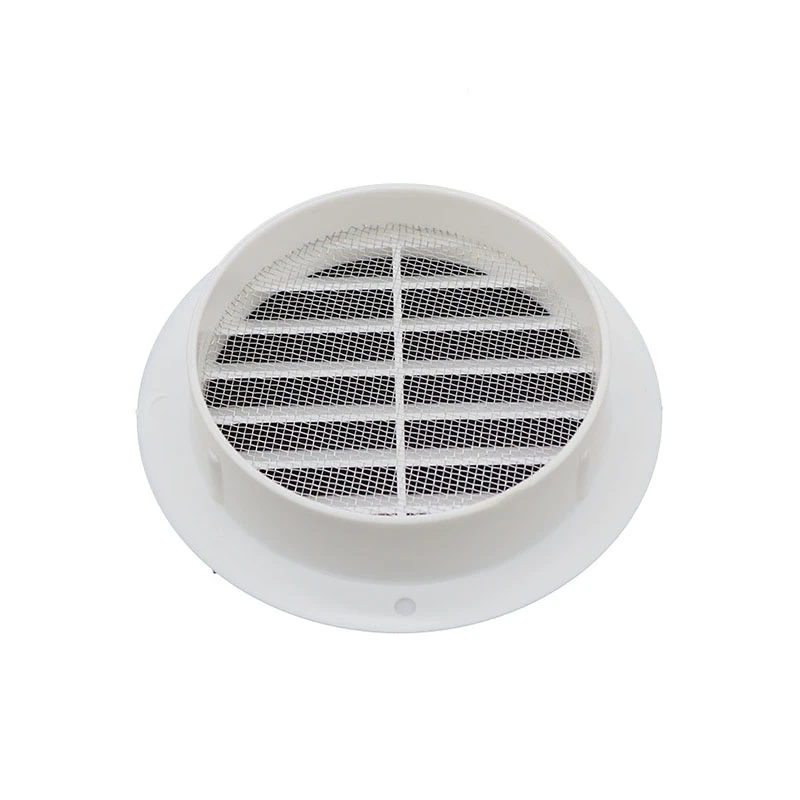

The Upmann 66610 ventilation grille seals 100 mm diameter ventilation ducts with a 125 mm round, white cover. The short connecting piece is attached to the pipe or hose, and a fly screen keeps insects out of the duct. The grille is made of polystyrene and is sold individually.
The grille is aimed at installers, drywallers and DIY enthusiasts who want to discreetly seal off DN 100 supply or exhaust air ducts in bathrooms, toilets, kitchens or storage rooms; further Upmann products can be found at Upmann bei Keuck .
Typical uses and points you should clarify before buying:
The round cover plate looks particularly discreet on smooth wall and ceiling surfaces and neatly covers the 125 mm opening. It is installed without tools by simply snapping it into place; the fly screen keeps the cable unobstructed.
The decisive factors are the cable diameter, installation location, and the desired color of the cover.
For dark surfaces, there is the Upmann ventilation grille DN 100 anthracite in the same nominal diameter; for larger pipes, the Upmann ventilation grille DN 125 white .
The plastic grille is intended as an interior closure; on the exterior wall, weather protection grilles made of aluminum protect the opening from rain and wind.
The grille is simply pushed on; therefore, check that the fitting is securely attached to your pipe. If the free air cross-section needs to be calculated, have the value confirmed by the manufacturer beforehand.
The information corresponds to the Upmann product description for item 66610.
| Manufacturer | Upmann GmbH & Co. KG |
| Manufacturer part number / EAN | 66610 / 4005046666100 |
| Product type | Round ventilation grille with connection spigot |
| Nominal diameter / Connection diameter | DN 100 / 100 mm |
| External dimensions | Ø 125 mm |
| Connection | Short fitting for attaching round pipes or hoses |
| Insect protection | Yes, fly screen |
| material | Plastic (polystyrene) |
| Color | White |
| Sales unit | 1 piece |
| Keuck article number | 10695 |
| Further details can be found at Keuck | DN 100 anthracite, DN 90, DN 125, DN 150 |
