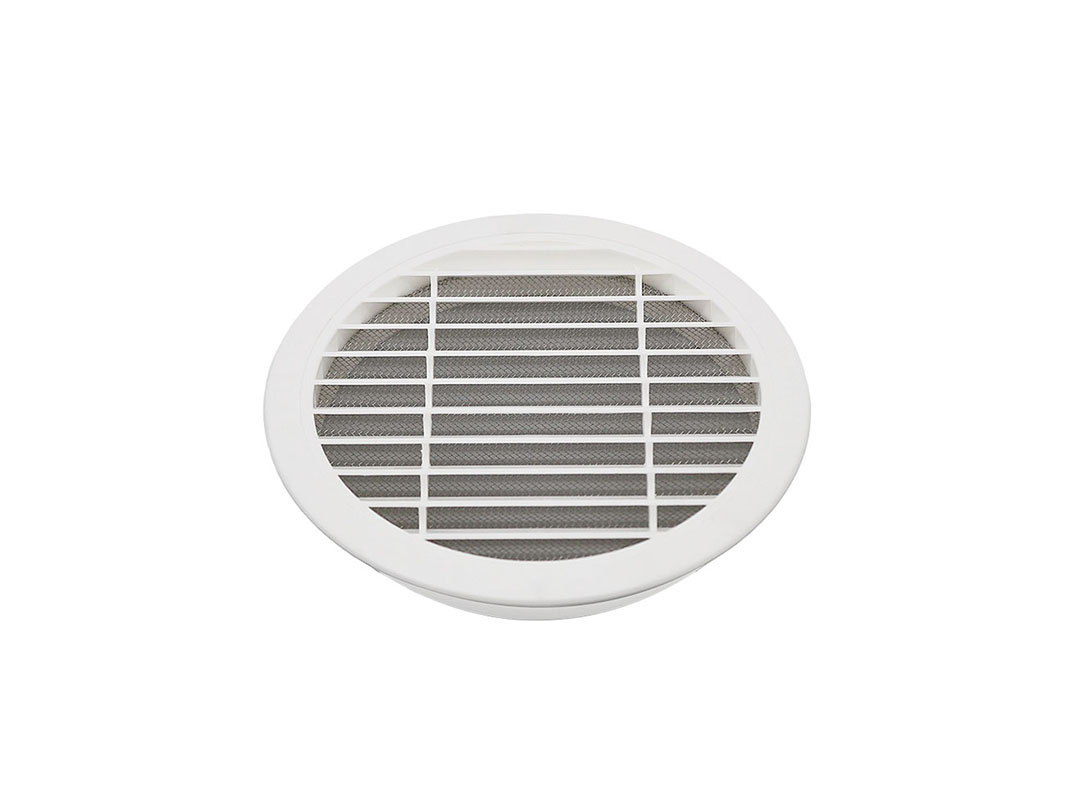

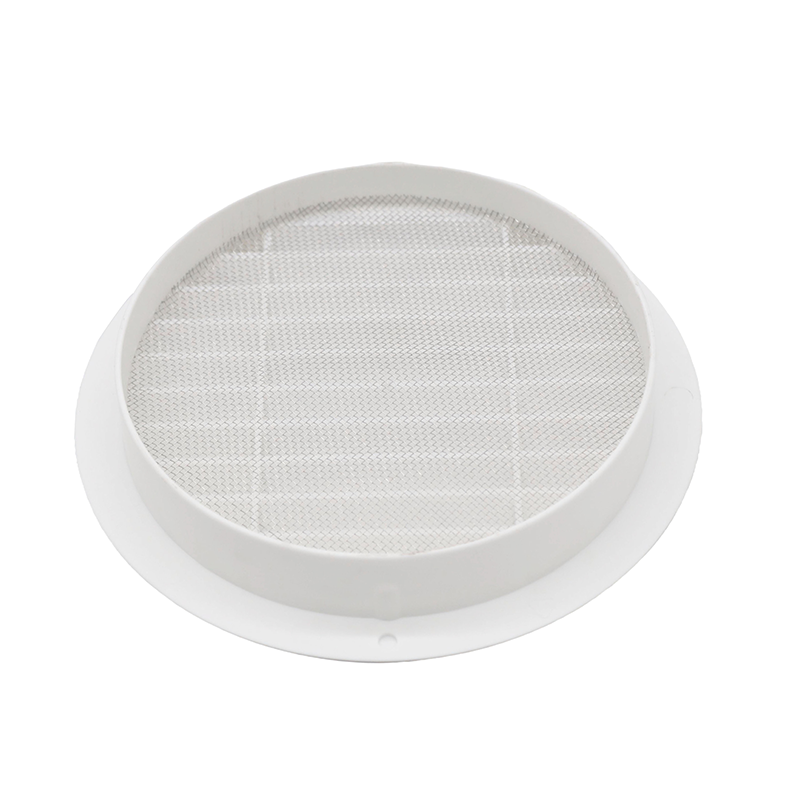

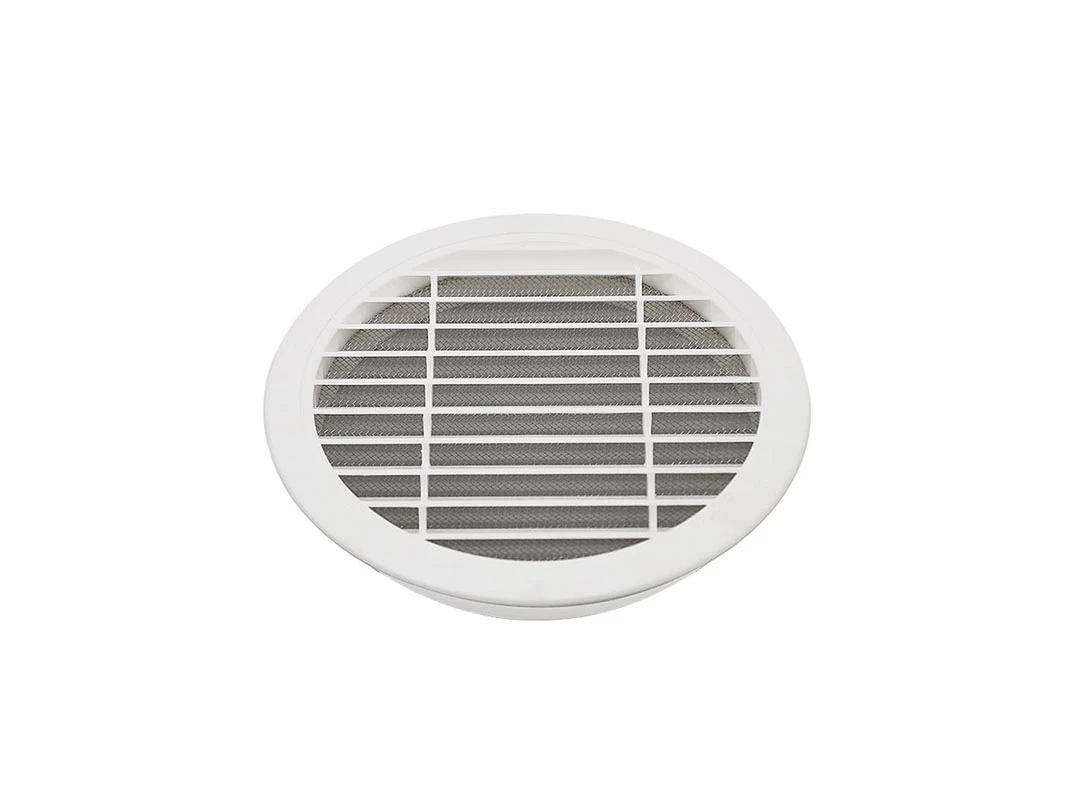

The Upmann 66615 ventilation grille seals off 150 mm diameter ventilation ducts in walls or ceilings. The short, round connector is attached to the pipe or hose, and an integrated insect screen keeps the duct clear. The white plastic cover, with an outer dimension of 175 mm, blends discreetly with light-colored surfaces. Sold individually.
The grille is aimed at installers, drywallers and DIY enthusiasts who want to neatly seal larger supply or exhaust air ducts, such as those from exhaust systems or fans, on the room side; you can find other Upmann products at Upmann at Keuck .
Typical uses and points you should clarify before buying:
With a nominal diameter of 150 mm, the grille is suitable for ducts carrying larger volumes of air, yet it is still easy to attach. The insect screen keeps the duct unobstructed, and the white cover blends discreetly into light-colored wall and ceiling surfaces.
The decisive factors are the pipe diameter and whether the grille is located on the room side or on the facade.
For pipes with a smaller diameter, Keuck offers the Upmann ventilation grille DN 125 white and the Upmann ventilation grille DN 100 anthracite .
The plastic grille is intended as an interior-side closure; on the exterior wall, weather protection grilles protect the pipe from rain and wind.
Before purchasing, check whether the fitting fits the outer diameter of your pipe. If the free air cross-section needs to be calculated, have the value confirmed by the manufacturer beforehand.
The information is taken from the Upmann product description for article 66615; the material corresponds to the Upmann plastic grid series.
| Manufacturer | Upmann GmbH & Co. KG |
| Manufacturer part number / EAN | 66615 / 4005046666155 |
| Product type | Ventilation grille with round connection spigot |
| Nominal diameter / Connection diameter | DN 150 / 150 mm |
| Connection | Short fitting for attaching round pipes or hoses |
| External dimensions | 175 mm |
| Insect protection | Yes |
| material | plastic |
| Color | White |
| Sales unit | 1 piece |
| Keuck article number | 10697 |
| Other nominal diameters available from Keuck | DN 90, DN 100, DN 125 |
