Who is the reinforcement connector suitable for?

The device is aimed at structural and concrete construction companies, steel fixers and construction companies that tie reinforcements for ceilings, floor slabs or walls in large quantities; for concrete cutting on the same construction site we carry the Makita 40V cordless cut-off grinder CE003GZ02 .

Areas of application and selection criteria

Typical uses and points to check before ordering:

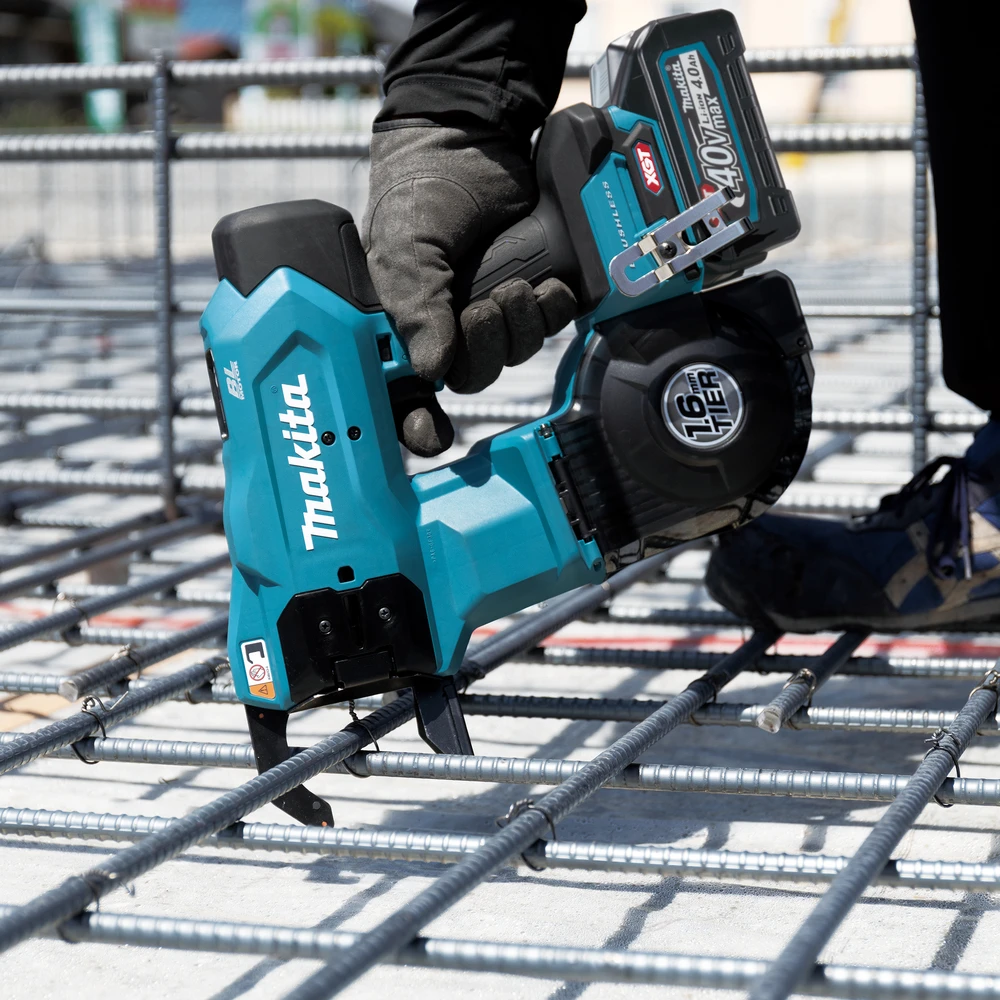

• Tying of reinforcing steel in ceilings and floor panels
• Reinforcement of walls, foundations and columns
• Fasteners for underfloor heating systems according to Makita
• Rod combinations from 10 x 10 to 29 x 25 / 35 x 19 mm
• Three rods up to (19 x 19) x 25 mm, four rods up to (16 x 16) x (16 x 16) mm
• Use only 1.6 mm binding wire, e.g. Makita 1915N0-0
• Binding wire must be ordered separately.

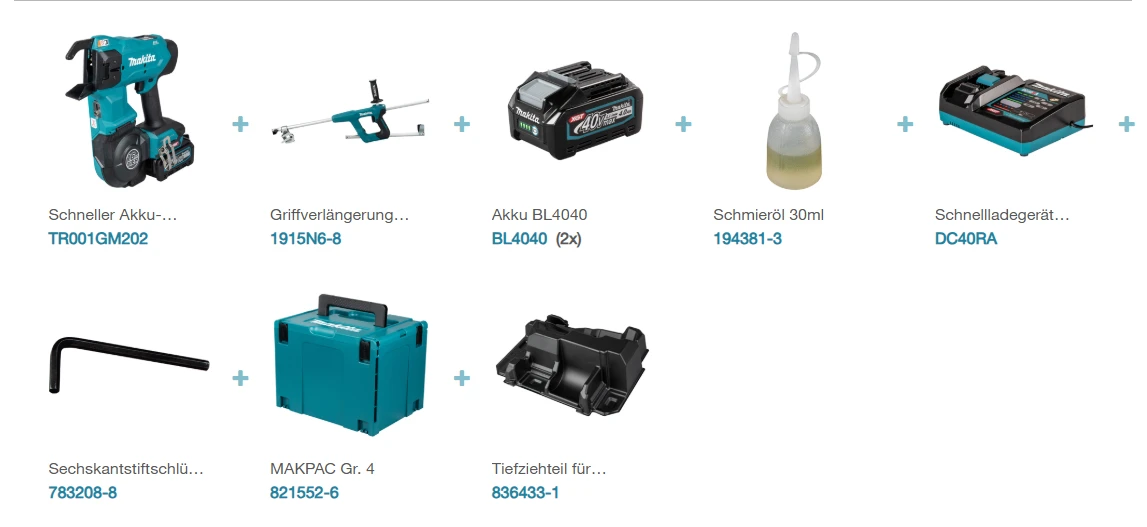

• Check the scope of delivery of the version before ordering.

Your advantage when buying

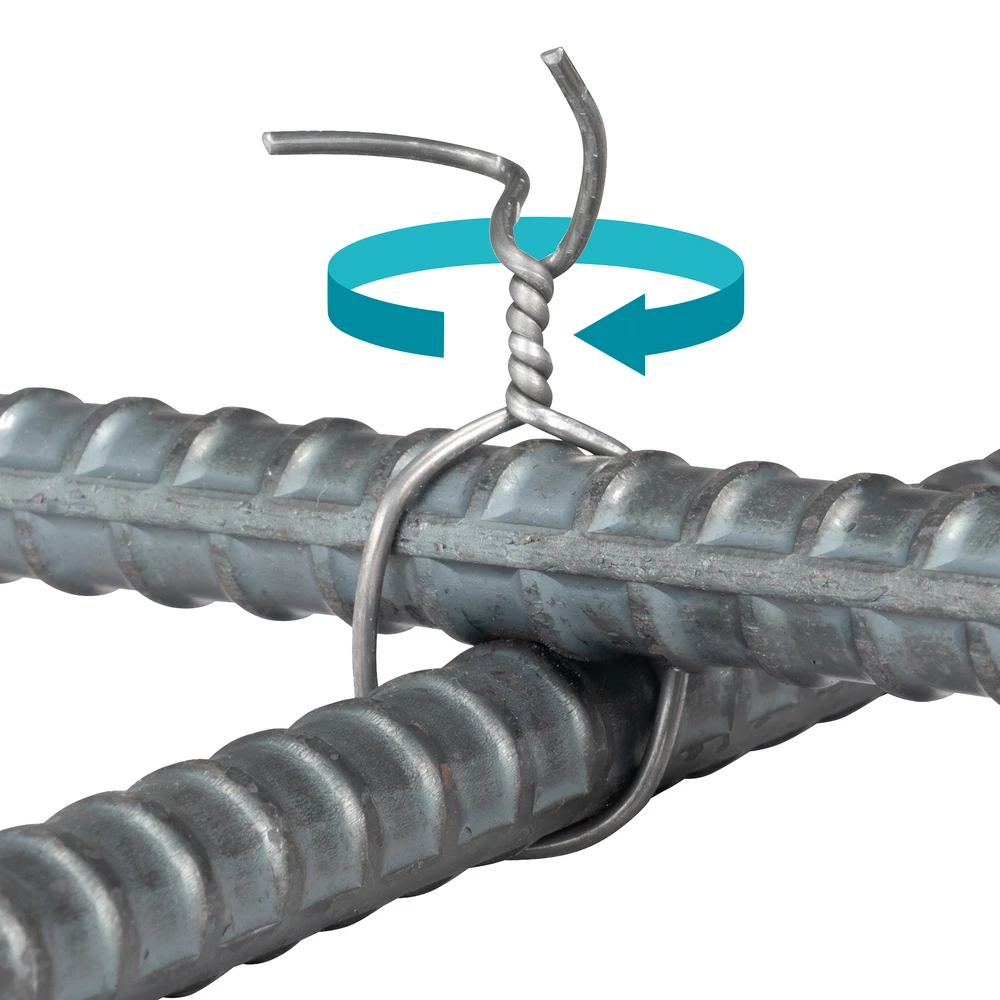

The device twists the connection clockwise, allowing you to tighten individual bonds by hand if necessary; you can find other devices from the 40V system on our Makita brand page .

What you should pay attention to when making your selection

The crucial factors are rod diameter, number of rods per node and desired binding strength, as these determine whether the device reliably detects every intersection.

Binding capacity and wire

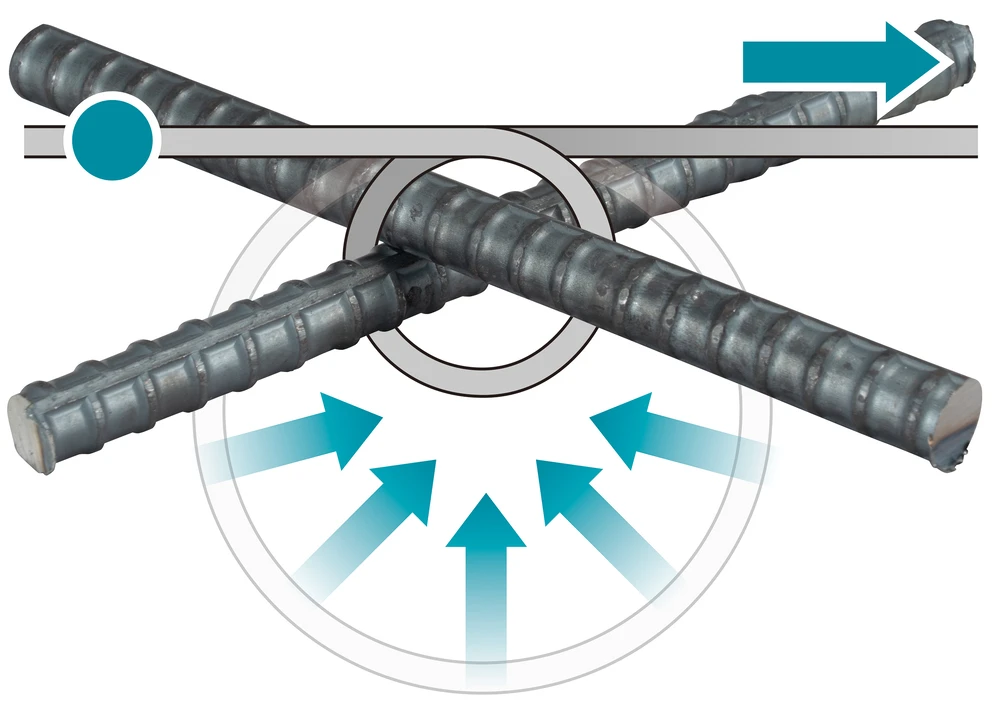

The TR001G works exclusively with 1.6 mm wire; according to Makita, thanks to wire retraction, it achieves up to 65% higher binding strength than the LXT-18 V models.

Weight and handling

The device weighs 2.6 kg, with battery depending on the type 3.3 to 4.5 kg; according to the data sheet, a handle extension is included in the scope of delivery of the set version.

Safety and operational limits

At a sound pressure level of 80 dB(A), you should wear hearing protection; check connections at statically relevant points and observe the reinforcement plans.

Product features at a glance

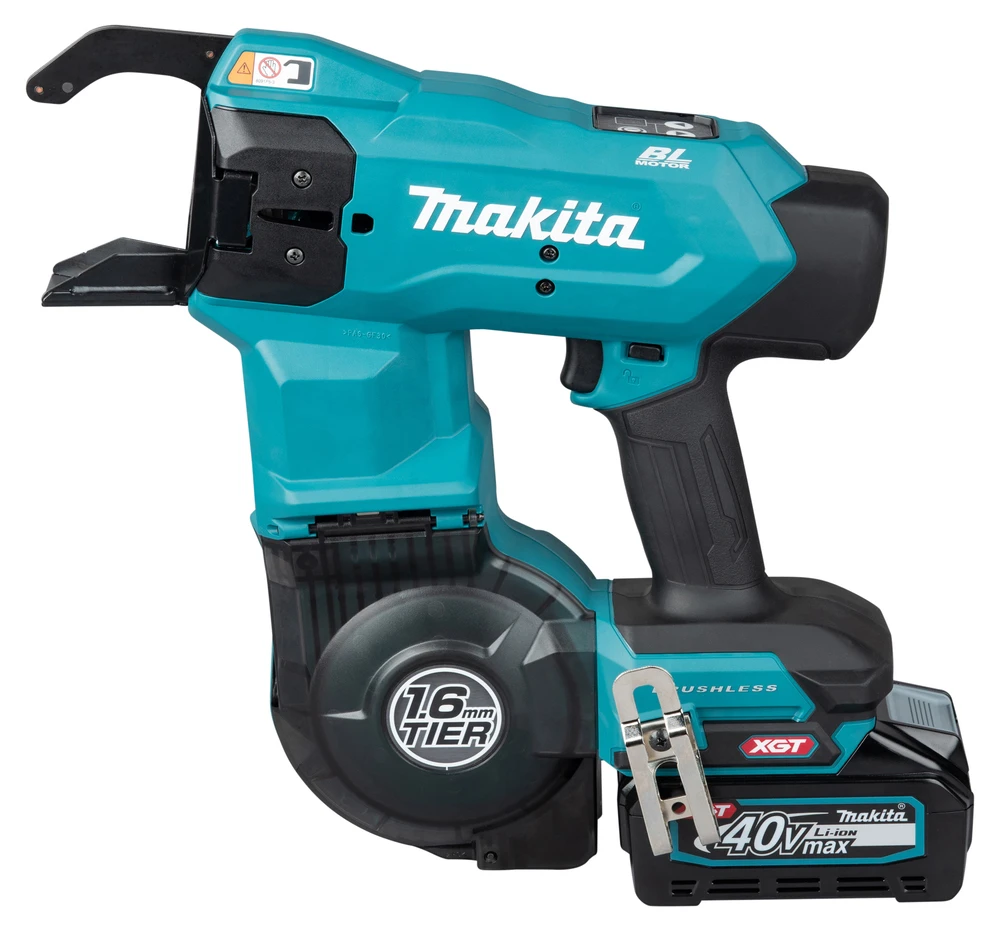

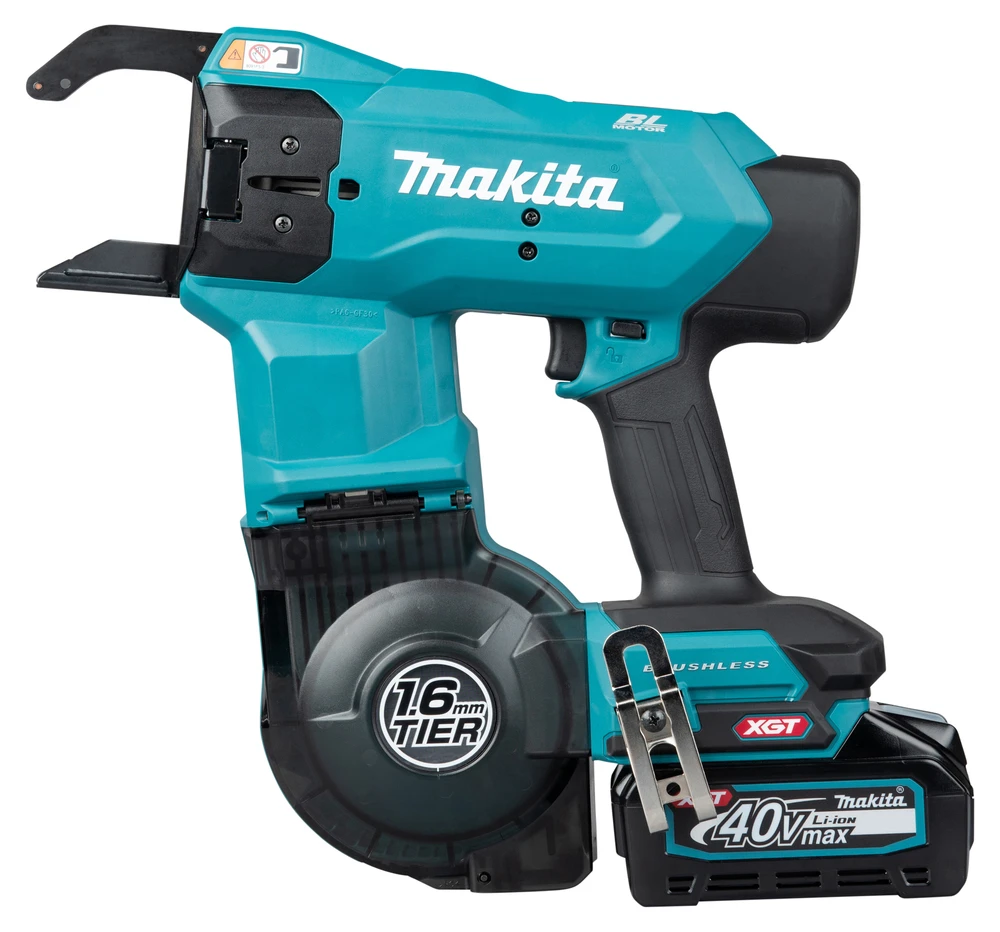

Technical specifications: Makita TR001G cordless rebar connector

The most important information for planning and ordering at a glance; the values ​​are taken from the Makita product data sheets TR001G and TR001GM202 (as of 04/2026).
